Bulk Material Handling System

Systems are installed for wide range of capacities for cement & allied industries
BMHS

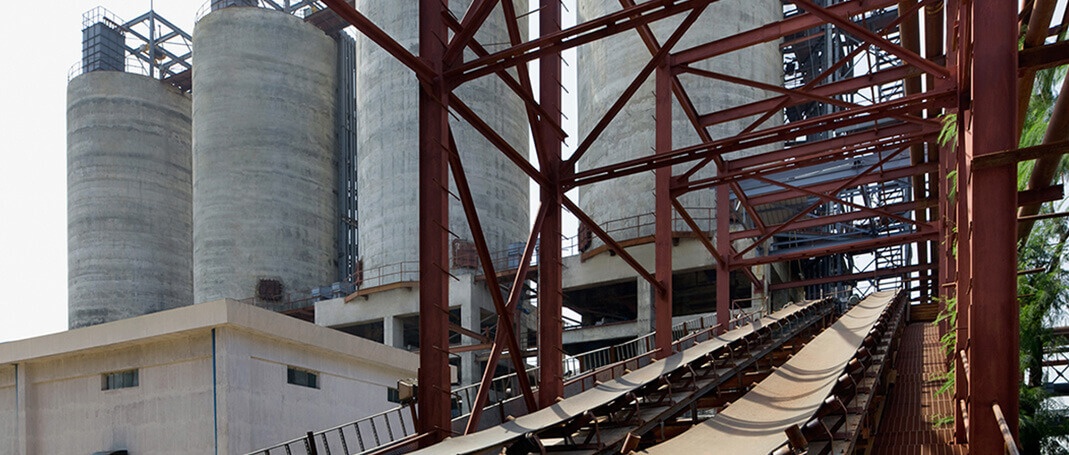

Material Handling System (Mechanical)

Certain applications may require Mechanical System for conveying of fly ash. For transportation / feeding / blending / classification of fly ash in cement industry, we also offer various systems like bagging/bag unloading system, truck/tanker loading/unloading system, wagon loading/unloading system, bucket elevator system, air slide system, weigh bin system, classifier system, blending system, etc. as per the application requirement as a part of total turnkey package. MBPL's Mechanical Systems are installed for wide range of capacities for cement and allied industries.

Pneumatic
Conveying System

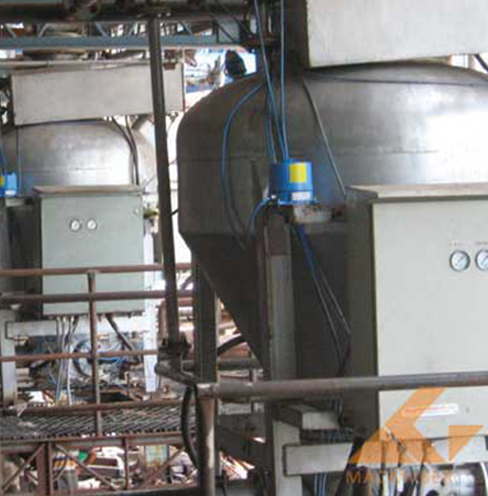

Macawber Beekay specializes in Dense Phase Pneumatic Conveying System for conveying of various powdery materials like Aluminium / Zinc Calcine / Cement / Raw Meal / Clinker Dust / Limestone / Sand / Bentonite / Sinter Dust / Iron Ore Dust / Soda Ash / Chemical Process Plant Dust, etc. for Cement / Steel (Ferrous / Non-ferrous) / Paper / Foundry / Chemical / other Process industries.

Macawber Beekay, with its patented Dome Valve design and the technology of Dense Phase Pneumatic Conveying, has always kept a brand name with these industries by giving practical solutions to the various requirements as arise from time to time, irrespective of batch type/continuous conveying, shorter/longer distances, lower/higher capacities, extreme physical/chemical properties, temperature ranges, etc.

Dense phase pneumatic conveying has following distinct advantages over conventional lean phase conveying:

  • Long distance conveying is possible. Hence destination silos can be placed at convenient location within the plant / outside plant boundary wall.
  • There is no limitation on layout or number of bends.
  • Systems are versatile to handle varied nature of materials from fine to coarse particles. It is important to know the granulometry of material being handled before designing the system.
  • Higher handing capacity is possible over specified conveying distance.
  • This is a low velocity conveying, hence wear to the material conveying pipes is less.
  • Energy efficient systems. Compressed air is consumed during material conveying only.
  • Unique design of Dome Valve offers 100% sealing when closed and full bore unobstructed flow of material when open.
